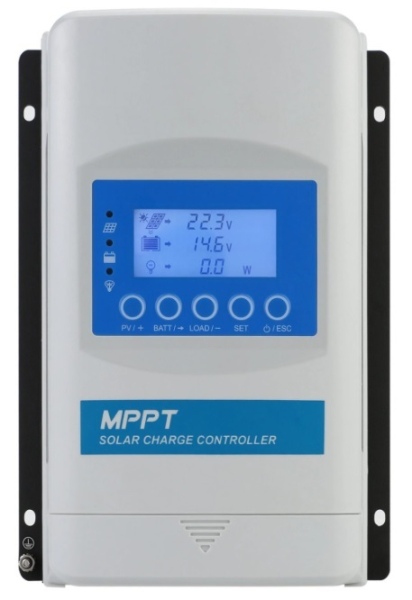

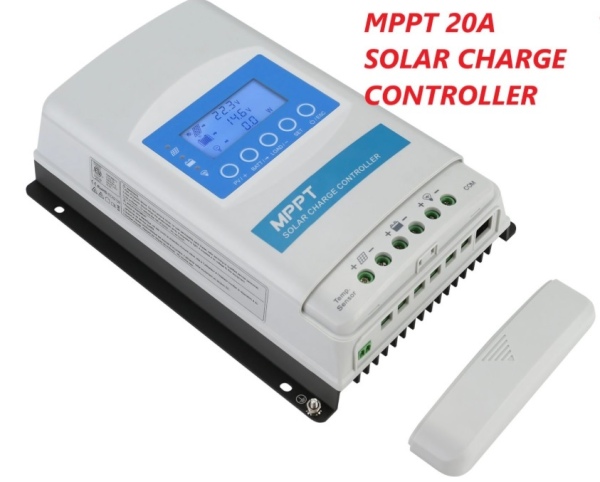

MPPT Charge Controller

12V / 24V DC

20A

Max Input Power: 12V @ 520W | 24V @ 1040W Max. PV open circuit voltage: 100VDC (92V at 25°C temperature)

Compatibility: Lead-acid (Gel, Sealed, Flooded) and Lithium Battery

Voltage range: 9V~32V

CE certification LVD EN/IEC62109, EMC EN61000-6-1/3

Ultra-fast tracking speed efficiency up to 99.5%

Maximum DC/DC transfer efficiency up to 98.3%

Weight: 0.96kg

Dimensions: 21715856.5(mm)

Warranty 12 months
